CyberNational brings clients to the forefront of the modern age of forensic investigation with a range of ballistics-related products specialized for most law enforcement applications. The equipment we provide is constructed for durability and designed for high-level accuracy to bring confidence and utility to every examination.
Click a title below to learn more about our outstanding range of products.

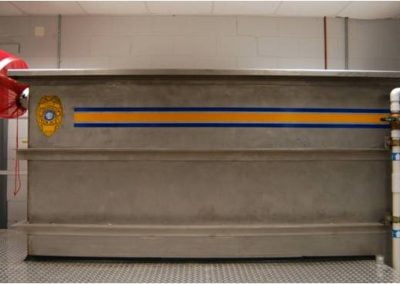

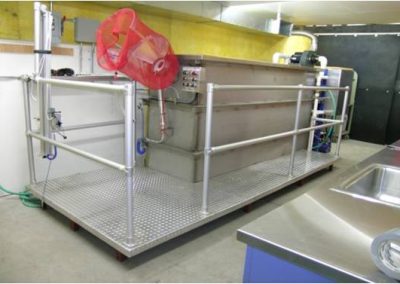

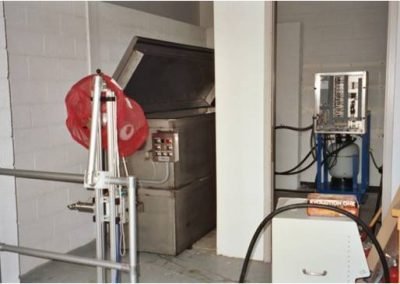

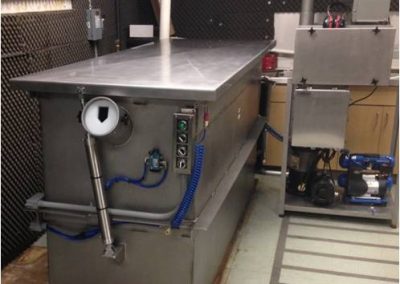

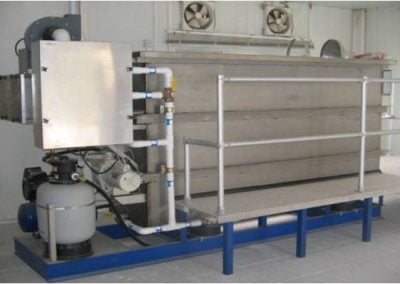

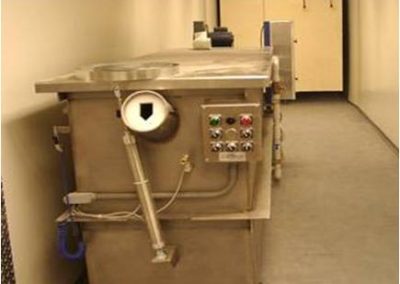

CyberNational’s Bullet Recovery System is a completely self-contained unit with customization to meet any size and requirements.
The CyberNational Bullet Recovery System is proof-tested to 13,000 ft-lbs. (50 BMG) before leaving our facility.
The all-stainless containment vessel is constructed of 1/4” thick stainless steel and/or 3/8″ thick stainless steel in the bottom and far side, offering 28% to 50% greater protection and strength than 3/16″ thick tanks.
Additional, every abutment welded 4 times, TIG inside & outside and MIG inside & outside to assure a lifetime of leak-free service.

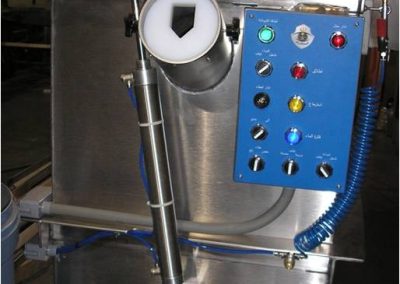

System includes a 6″ diameter shooting-port, gleaming white HDPE mat, ½ HP stainless commercial grade water pump and high performance cartridge filter. Heavy gauge stainless lid insures no projectile can leave the containment vessel. Lid is raised and lowered by twin pneumatic actuators. The lid construction is such that water or condensation does not drain outside the tank when operated.
A single lever activates the recovery wand, enabling the examiner in just moments to vacuum 15 or more 44 magnums and all fragments in a single sweep.
A high-pressure turbine blower pulls air from around the shooter, into the vessel, through a 30 percent pre-filter and into a laboratory-certified 99.97 percent HEPA filter to insure no injurious levels of particulates, lead or odor are released into the workspace.

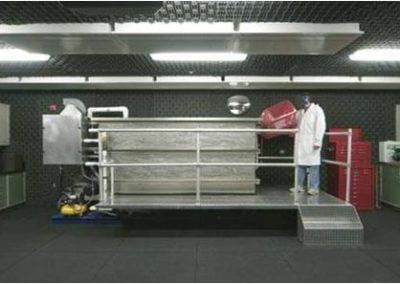

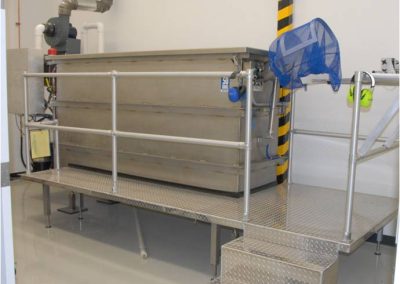

The 60” high unit has a “footprint” of 15′ 2″ x 5′ and a maximum lid-open height of 8′ 2″. Gleaming stainless steel vessel, polished aluminum handrails, and aluminum checker decking on the shooting platform, adjacent walkway and stairway complete the fit and finish and showcase an uncommon craftsmanship and attention to detail.
The 48” high unit has a footprint of 11′ 5″ x 3′, maximum lid-open height of 6′ 2″.
CyberNational’s Bullet Recovery System has been engineered to provide the highest degree of safety, durability and convenience. No other system comes close in features, performance and value. CyberNational is the only company providing a 5-year vessel warranty and 2-year, no-hassle parts warranty.
Click here to see the Bullet Recovery System brochure.
Customized to meet any requirement, the Brass Catcher is a feature on CyberNational’s Bullet Recovery System and Ballistic Box that captures the brass from semi-automatic handguns or rifles when needed for evidence.
The recovery bag is made of a see-through mesh type material and can be adjusted for use on semi-automatic handguns or rifles. The Brass Catcher can be customized to fit other brands of bullet recovery equipment.
Click here to see the Brass Catcher brochure.
A remote firing fixture is principally designed to put distance between the examiner and a suspect faulty firearm. It is progressively more difficult finding an effective means of protecting the examiner from the punishing effects of recoil inflicted by the newer generation of high-power weapons.
CyberNational’s Remote Firing Platform is available as an accessory for CyberNational’s Bullet Recovery System and as a stand-alone fixture custom-engineered to your existing Bullet Recovery Tank.
Click here to see the Remote Firing Platform brochure.
The Portable Remote Firing Cart is principally designed to put distance between the examiner and a suspect faulty firearm from any firearm testing location, indoor or outdoor firing range, metal trap or bullet recovery tank. The device is also a means of protecting the examiner from the punishing effects of recoil inflicted by the newer generation of high-power weapons.
The remote platform is mounted on a custom designed cart that rolls out of the way when not in use. Includes an on-board compressor.
Click here to see the Portable Remote Firing Cart brochure.

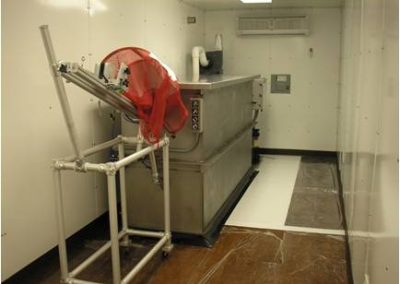

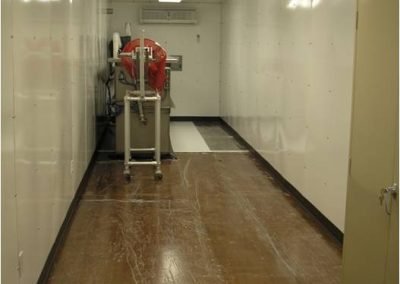

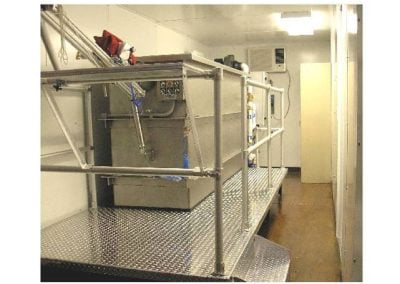

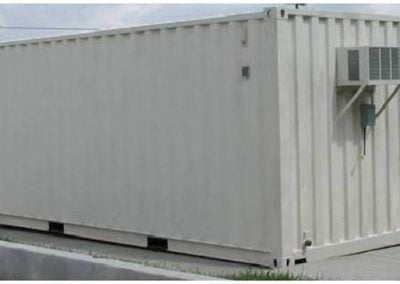

CyberNational’s Portable Shooting Lab is intended for those applications where existing space is at a premium. Our portable lab may be used as temporary space until construction of permanent facilities is complete, or as a permanent, self-contained facility.
It is available as an insulated 8’ x 8’ x 20’ (or 40’) steel container and is equipped with electrical, lighting, ventilation, air conditioning/heating, ammunition cabinet and telephone connection. The 40’ configuration may also be equipped with office and/or lab benches for microscopes, bookshelves, IBIS/NIBN equipment, etc. Shipped complete and operational, you simply provide 208/240 VAC at 60 amps, water and drain connection (if required). The Portable Shooting Lab is customized to meet any requirement.
Click here to see the Portable Shooting Lab brochure.
Our Ballistic Box is designed to accommodate those extreme high velocity/frangible projectiles that may otherwise disintegrate when fired into water. Extended, variable-angle shooting port and barrel rest increase examiner safety and comfort.
Featuring a 100 percent stainless steel construction, the Ballistic Box’s 8′ x 10.5” x10.5” rectangular tube contains 7 ft. of highly packed, neatly layered medical cotton. It includes a compression crank to compact the cotton for better stopping power and releases the cotton for easy retrieval. The beefy steel tube mounts on a center pivot height adjustment which allows a fully adjustable shooting angle, and the four-sided enclosure opens completely in half for ease of retrieval. The entire platform rolls on heavy-duty locking casters.
Ease of retrieval for bullets or brass is the hallmark of this system. Customized to meet any requirement, the Ballistic Box has an 11 ga. S-S tube is fabricated with an extended shooting port which is generously vented on three sides, a barrel-rest insert machined from 1-inch solid HMW, a 5/8” steel stop plate, and will be shipped with a “self-healing” flame deflector. The completely stainless steel construction eliminates the need for paint and insures a long, maintenance-free life for your valuable equipment.
Click here to see the Ballistic Box brochure.
The RETRIEV-ALL is principally designed as a Brass and Shell retrieval system for any weapon ranging from pocket Derringer to 50 BMG.
System construction will maximize safety of personnel. Self-contained design will incorporate all necessary components on a single, transportable structure.
Use the RETRIEV-ALL in place of your range (or if you don’t have a range) when all you need is the Brass or Shotgun Shells.
Also, can be used as a CLEARING DEVICE.
Inexpensive sand as the stop medium instead of the expensive rubber used by others.
Click here to see the Retriev-All brochure.
CyberNational’s Evidence Table is adjustable and comes in a range of sizes to fit your needs.
The Evidence Table features an adjustable table height and an evidence hanging bar. The table rests on 4 heavy-duty locking casters for easy mobility.
Click here to see the Evidence Table brochure.
CyberNational supports numerous forensic science laboratories across the United States as well as International. We have years of experience with all types of electrical services, 60 HZ or 50 HZ. We customize our equipment to work in all countries.
Click on the map to enlarge it.
For more on the advantages of CyberNational forensic equipment, please contact us via our web form or call us directly at 615-893-1099. You can also email us at Karen@cyber-national.com to reach us directly
